Tilt and turn windows
Nine PVC window systems from 70 to 85 mm, made to order in 1 mm increments, all on Roto NX hardware.
One handle, three positions.
Handle down, the sash is locked at several points around the frame. Turned sideways, the sash swings in like a casement for cleaning and full airflow. Turned up, it tilts in at the top for secure ventilation, with a 45° micro-vent position in between.
Every unit can also be ordered tilt-only, turn-only or fixed, and steel reinforcement in the frame is sized per unit and stated on the quotation.

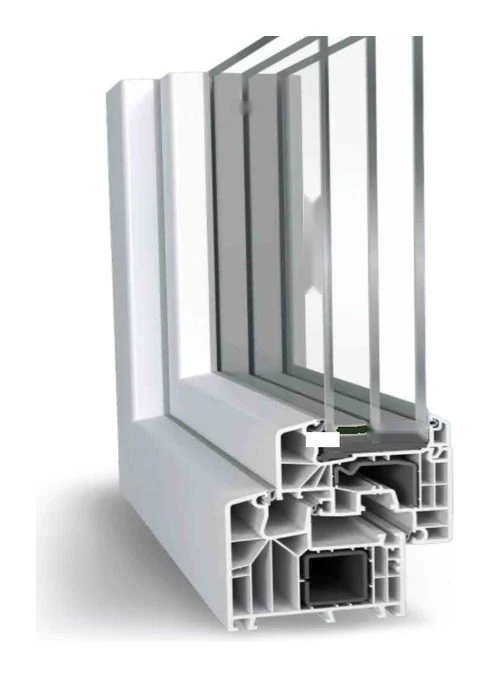

Series 85
85 mm frame depth
Series 85 MD
The top window in the range. Six chambers and three gaskets in an 85 mm frame, the best sound reduction in the range, and the only system with an aluminum cladding option.
Aluminum cladding available- Frame depth
- 3 3/8 in85 mm
- Chambers
- 6
- Gaskets
- 3
- Glazing
- up to 1 7/8 inup to 48 mm
- Reference U-value
- 0.75 W/m²Kabout 0.13 Btu/h·ft²·°F
- Hardware
- Roto NX Premium, five anti-lift points
- Aluminum cladding, lacquered, powder-coated or anodized, in any RAL color
- Widest choice of glazing packages

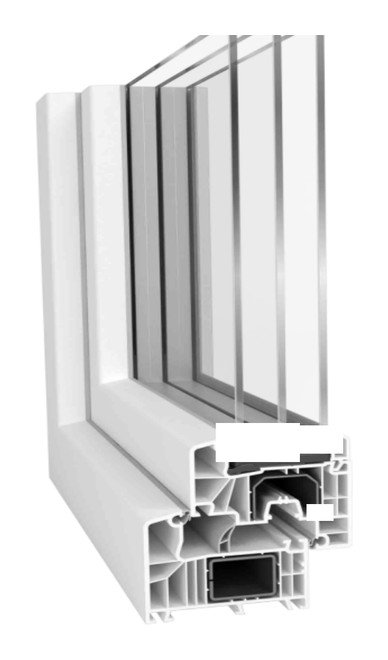

Series 85 T
Seven chambers in an 85 mm frame. A classic sash line and balanced proportions for traditional and transitional elevations, with the same thermal value as the 85 MD.
- Frame depth
- 3 3/8 in85 mm
- Chambers
- 7
- Gaskets
- 3
- Glazing
- up to 1 7/8 inup to 48 mm
- Reference U-value
- 0.75 W/m²Kabout 0.13 Btu/h·ft²·°F
- Hardware
- Roto NX

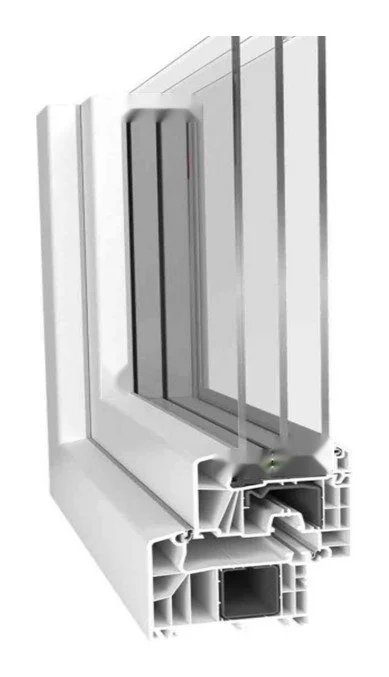

Series 85 AD
Six chambers and two gaskets, built around double-glazed units with very low heat loss. Frames combine with the other 85 mm systems on one elevation.
- Frame depth
- 3 3/8 in85 mm
- Chambers
- 6
- Gaskets
- 2
- Glazing
- up to 1 7/8 inup to 48 mm
- Reference U-value
- 0.78 W/m²Kabout 0.14 Btu/h·ft²·°F
- Hardware
- Roto NX
Series 80
80 mm frame depth, its own color range

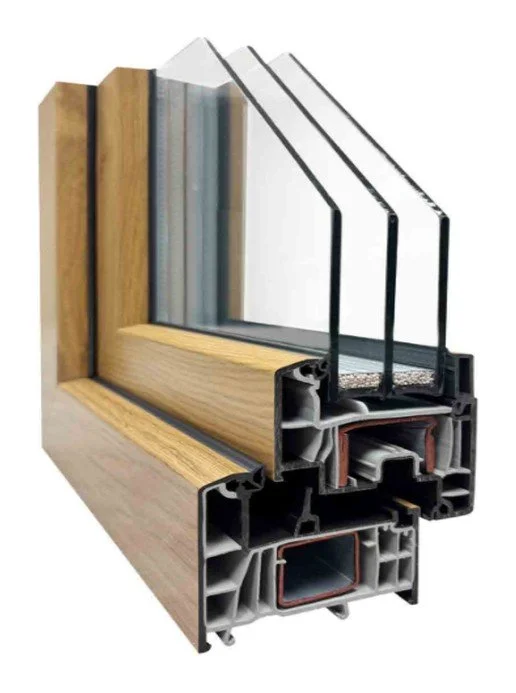

Series 80 MD
A compact frame and sash with three gaskets. The best thermal and acoustic values in the 80 mm family, with its own color range.
- Frame depth
- 3 1/8 in80 mm
- Chambers
- 6
- Gaskets
- 3
- Glazing
- up to 1 7/8 inup to 48 mm
- Reference U-value
- 0.77 W/m²Kabout 0.14 Btu/h·ft²·°F
- Hardware
- Roto NX Premium, five anti-lift points

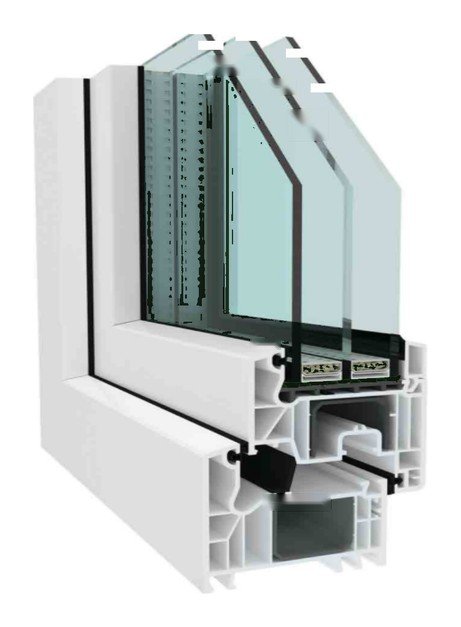

Series 80 S
An added center gasket and a sash built for triple glazing. The center seal improves both sound reduction and thermal performance.
Built for triple glazing- Frame depth
- 3 1/8 in80 mm
- Chambers
- 6
- Gaskets
- 3
- Glazing
- up to 1 7/8 inup to 48 mm
- Reference U-value
- 0.75 W/m²Kabout 0.13 Btu/h·ft²·°F
- Hardware
- Roto NX

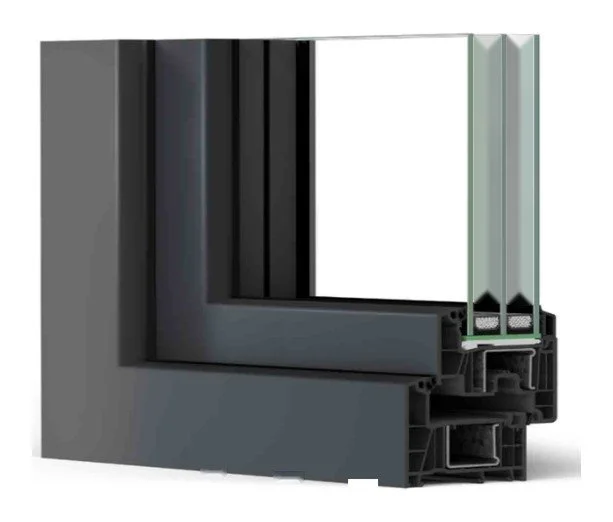

Series 80 AD
The double-sealed version of the 80 mm profile. High airtightness and weather resistance at a lower price than the MD.
- Frame depth
- 3 1/8 in80 mm
- Chambers
- 6
- Gaskets
- 2
- Glazing
- up to 1 7/8 inup to 48 mm
- Reference U-value
- 0.82 W/m²Kabout 0.14 Btu/h·ft²·°F
- Hardware
- Roto NX
Series 76
76 mm frame depth

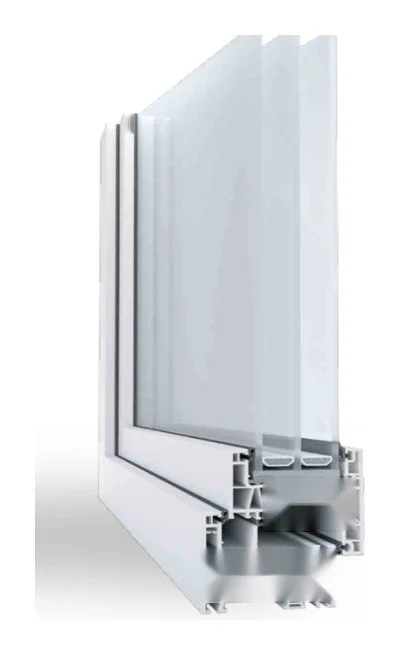

Series 76 MD
A symmetrical, squared-off sash and frame. The cleanest sightline in the range, chosen for modern elevations.
- Frame depth
- 3 in76 mm
- Chambers
- 6
- Gaskets
- 3
- Glazing
- up to 1 7/8 inup to 48 mm
- Reference U-value
- 0.78 W/m²Kabout 0.14 Btu/h·ft²·°F
- Hardware
- Roto NX
- Renovation frames available

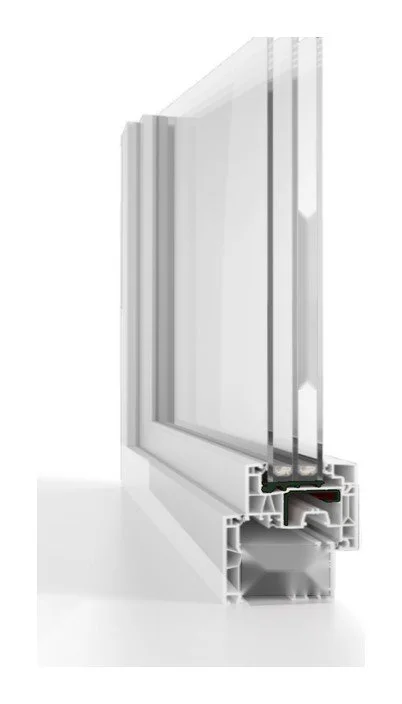

Series 76 AD
A neatly proportioned 76 mm system with the full finish range, specified where the wall or existing frame suits a 76 mm depth.
- Frame depth
- 3 in76 mm
- Chambers
- 6
- Gaskets
- 3
- Glazing
- up to 1 7/8 inup to 48 mm
- Reference U-value
- 0.79 W/m²Kabout 0.14 Btu/h·ft²·°F
- Hardware
- Roto NX

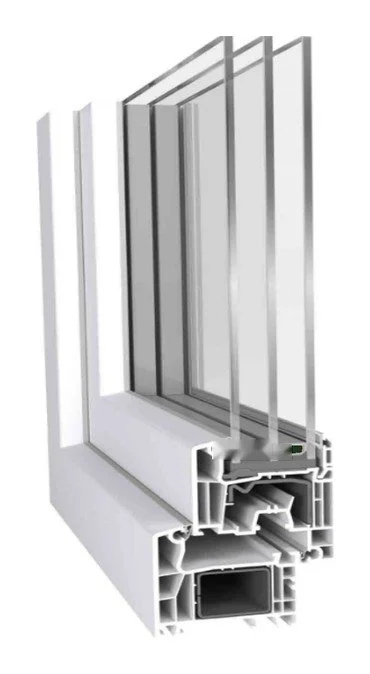

Series 70
70 mm frame depth
Series 70
Five chambers with large steel chambers for big windows and doors, and glazing up to 40 mm.
- Frame depth
- 2 3/4 in70 mm
- Chambers
- 5
- Gaskets
- 2
- Glazing
- up to 1 5/8 inup to 40 mm
- Reference U-value
- 0.86 W/m²Kabout 0.15 Btu/h·ft²·°F
- Hardware
- Roto NX
- Renovation frames available
Compare window systems
All nine systems side by side. Frames within a depth family can be combined on the same elevation.
| System | Frame depth | Chambers | Gaskets | Max. glazing | U-value (W/m²K) | Hardware |
|---|---|---|---|---|---|---|
| Series 85 MD | 3 3/8 in (85 mm) | 6 | 3 | 1 7/8 in | 0.75 | Roto NX Premium |
| Series 85 T | 3 3/8 in (85 mm) | 7 | 3 | 1 7/8 in | 0.75 | Roto NX |
| Series 85 AD | 3 3/8 in (85 mm) | 6 | 2 | 1 7/8 in | 0.78 | Roto NX |
| Series 80 MD | 3 1/8 in (80 mm) | 6 | 3 | 1 7/8 in | 0.77 | Roto NX Premium |
| Series 80 S | 3 1/8 in (80 mm) | 6 | 3 | 1 7/8 in | 0.75 | Roto NX |
| Series 80 AD | 3 1/8 in (80 mm) | 6 | 2 | 1 7/8 in | 0.82 | Roto NX |
| Series 76 MD | 3 in (76 mm) | 6 | 3 | 1 7/8 in | 0.78 | Roto NX |
| Series 76 AD | 3 in (76 mm) | 6 | 3 | 1 7/8 in | 0.79 | Roto NX |
| Series 70 | 2 3/4 in (70 mm) | 5 | 2 | 1 5/8 in | 0.86 | Roto NX |
U-values are European reference figures for a 1230 × 1480 mm window (about 48 × 58 in) with a center-of-glass Ug of 0.5 W/m²K. They are not NFRC ratings. Imperial U-values are converted for reference only.
Renovation frames
For replacing windows without removing the existing frame. Available on Series 76 MD and Series 70.
Fits over the old frame
A masking profile surrounds the existing wood frame and forms a finished interior trim. Outside, cladding profiles cover the old frame.
Cut to the opening
Masking profiles come in several widths and are cut to each opening, so the existing frame stays in place.
Keeps the glass area
The renovation frame is reduced in height, so the glass area barely changes. No damage to the facade and less finishing work.
Size limits
Units are made to order in 1 mm increments. These are the smallest sizes we can build.
| Unit type | Minimum size |
|---|---|
| Tilt and turn | 21 1/2 in × 16 3/8 in or 17 1/8 in × 19 7/8 in545 × 415 mm or 435 × 505 mm |
| Tilt-only or turn-only | 15 3/4 in × 15 3/4 in400 × 400 mm |
| Fixed | 8 1/4 in × 15 3/4 in210 × 400 mm |
Sizes are width × height. A second tilt arm is added on sashes from 59 in (1500 mm) wide.
Have drawings or a window schedule?
Send them over and we will return a quotation with freight, duty and customs included.
