Sliding and lift and slide doors
Five large-format systems with low thresholds and concealed hardware, glazed up to 48 mm.
Lift and slide or sliding?
On a lift and slide, turning the handle lifts the panel off its seals onto rollers. It glides with very little effort, even at full size, and lowering the handle sets it back down on the seals and locks it.
A sliding door seals as it closes, with no lift. It costs less and suits everyday patio doors. All five systems are shown below with their largest sizes. Two-panel means one sliding and one fixed panel; four-panel means two sliding panels meeting in the center.

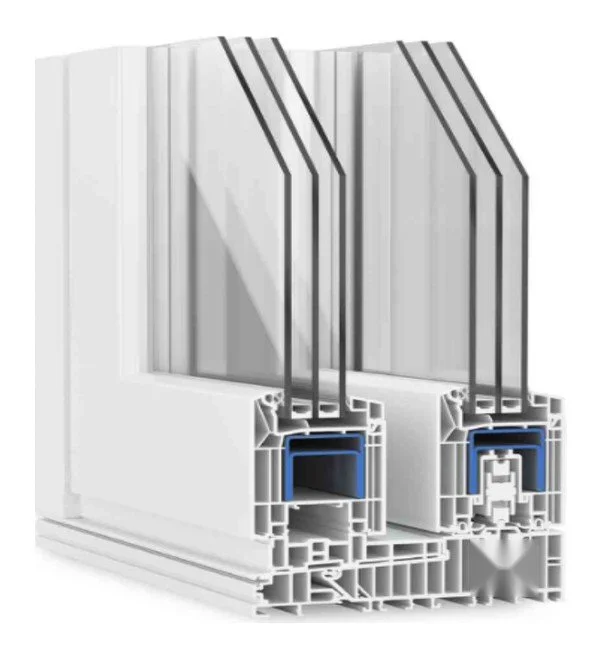

Lift & Slide 190
For the widest openings. A carriage housing keeps very large panels running true, and the four-panel layout spans up to 32 ft.
- Frame depth
- 7 1/2 in190 mm
- Glazing
- up to 1 7/8 inup to 48 mm
- Max. White, 2 panels
- 19 ft 8 in × 8 ft 10 in6000 × 2700 mm
- Max. White, 4 panels
- 32 ft 9 in × 8 ft 10 in10000 × 2700 mm
- Max. Color, 2 panels
- 16 ft 4 in × 8 ft 7 in5000 × 2630 mm
- Max. Color, 4 panels
- 22 ft 3 in × 8 ft 7 in6800 × 2630 mm
- Minimum, 2 panels
- 6 ft 1 in × 6 ft 4 in1860 × 1950 mm
- Operation
- Lift and slide, carriage housing
- The handle lifts the panel off its seals to slide and lowers it to lock.

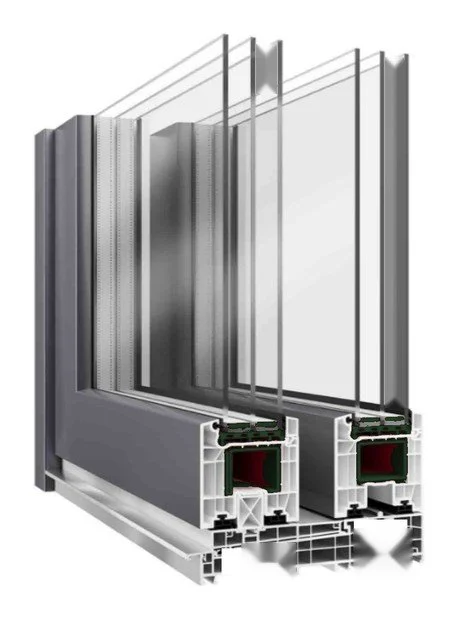

Lift & Slide 190 M
A lift and slide built from the fewest system components, for straightforward two-panel openings.
- Frame depth
- 7 1/2 in190 mm
- Glazing
- up to 1 7/8 inup to 48 mm
- Max. White, 2 panels
- 19 ft 8 in × 8 ft 10 in6000 × 2700 mm
- Max. Color, 2 panels
- 18 ft 0 in × 8 ft 6 in5500 × 2600 mm
- Minimum, 2 panels
- 6 ft 6 in × 6 ft 8 in2000 × 2040 mm
- Operation
- Lift and slide
- The handle lifts the panel off its seals to slide and lowers it to lock.

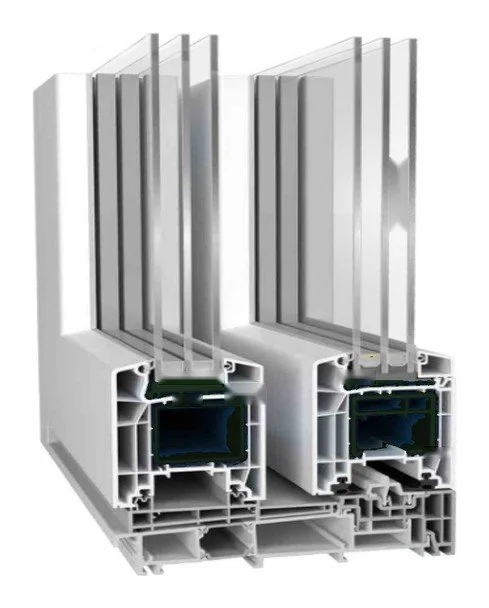

Lift & Slide 85
A lift and slide with a low, barrier-free threshold, concealed hardware and single panels up to 10 ft 5 in wide.
Barrier-free threshold- Frame depth
- 7 3/4 in197 mm
- Glazing
- up to 1 7/8 inup to 48 mm
- Max. White, 2 panels
- 19 ft 8 in × 8 ft 10 in6000 × 2700 mm
- Max. White, 4 panels
- 21 ft 3 in × 8 ft 10 in6500 × 2700 mm
- Max. Color, 2 panels
- 17 ft 0 in × 8 ft 3 in5200 × 2526 mm
- Max. Color, 4 panels
- 21 ft 3 in × 8 ft 3 in6500 × 2526 mm
- Minimum, 2 panels
- 6 ft 1 in × 6 ft 4 in1860 × 1950 mm
- Operation
- Lift and slide, concealed hardware
- The handle lifts the panel off its seals to slide and lowers it to lock.

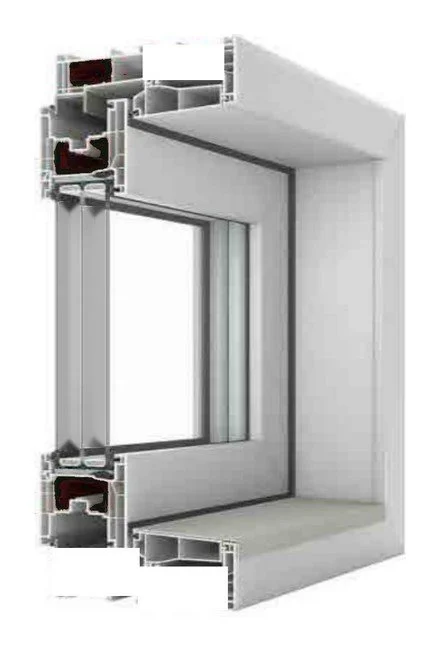

Smart Slide 154
A sliding patio door that runs on tilt and turn hardware. It is simpler and lighter than a lift and slide, and the panel seals as it closes without lifting.
Our recommendation- Frame depth
- 6 1/8 in154 mm
- Glazing
- up to 1 7/8 inup to 48 mm
- Max. White or color, 2 panels
- 19 ft 8 in × 8 ft 2 in6000 × 2500 mm
- Max. White or color, 4 panels
- 19 ft 8 in × 8 ft 2 in6000 × 2500 mm
- Minimum, 2 panels
- 3 ft 11 in × 2 ft 11 in1200 × 900 mm
- Operation
- Slides on tilt and turn hardware
- Our usual recommendation for single-family homes where easy daily use matters most.

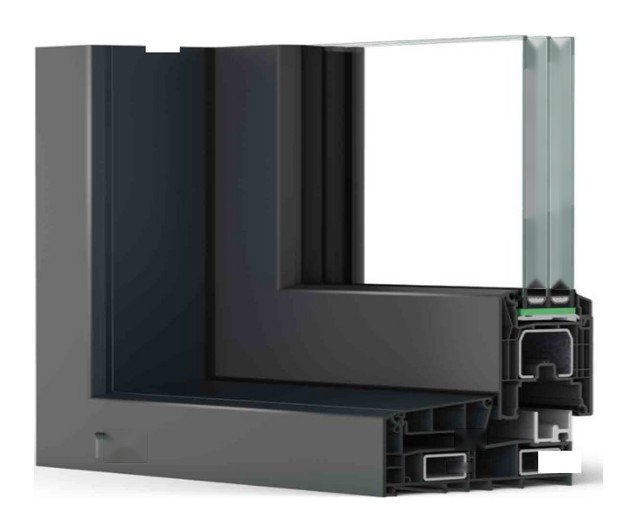

Slide 156
A space-saving sliding window and door for room-to-terrace openings. Smooth and quiet, with the sash sliding in a 156 mm frame.
- Frame depth
- 6 1/8 in156 mm
- Glazing
- up to 1 7/8 inup to 48 mm
- Max. White, 2 panels
- 13 ft 1 in × 8 ft 6 in4000 × 2610 mm
- Max. Color, 2 panels
- 13 ft 1 in × 7 ft 10 in4000 × 2410 mm
- Minimum, 2 panels
- 3 ft 11 in × 2 ft 11 in1200 × 900 mm
- Operation
- Sliding sash
Size table
Largest configuration in each system, width × height.
| System | Frame depth | Maximum | Minimum |
|---|---|---|---|
| Lift & Slide 190 | 7 1/2 in190 mm | 32 ft 9 in × 8 ft 10 in10000 × 2700 mm | 6 ft 1 in × 6 ft 4 in1860 × 1950 mm |
| Lift & Slide 190 M | 7 1/2 in190 mm | 19 ft 8 in × 8 ft 10 in6000 × 2700 mm | 6 ft 6 in × 6 ft 8 in2000 × 2040 mm |
| Lift & Slide 85 | 7 3/4 in197 mm | 21 ft 3 in × 8 ft 10 in6500 × 2700 mm | 6 ft 1 in × 6 ft 4 in1860 × 1950 mm |
| Smart Slide 154 | 6 1/8 in154 mm | 19 ft 8 in × 8 ft 2 in6000 × 2500 mm | 3 ft 11 in × 2 ft 11 in1200 × 900 mm |
| Slide 156 | 6 1/8 in156 mm | 13 ft 1 in × 8 ft 6 in4000 × 2610 mm | 3 ft 11 in × 2 ft 11 in1200 × 900 mm |
Imperial sizes are rounded down from metric. Colored units have smaller maximums than white.
